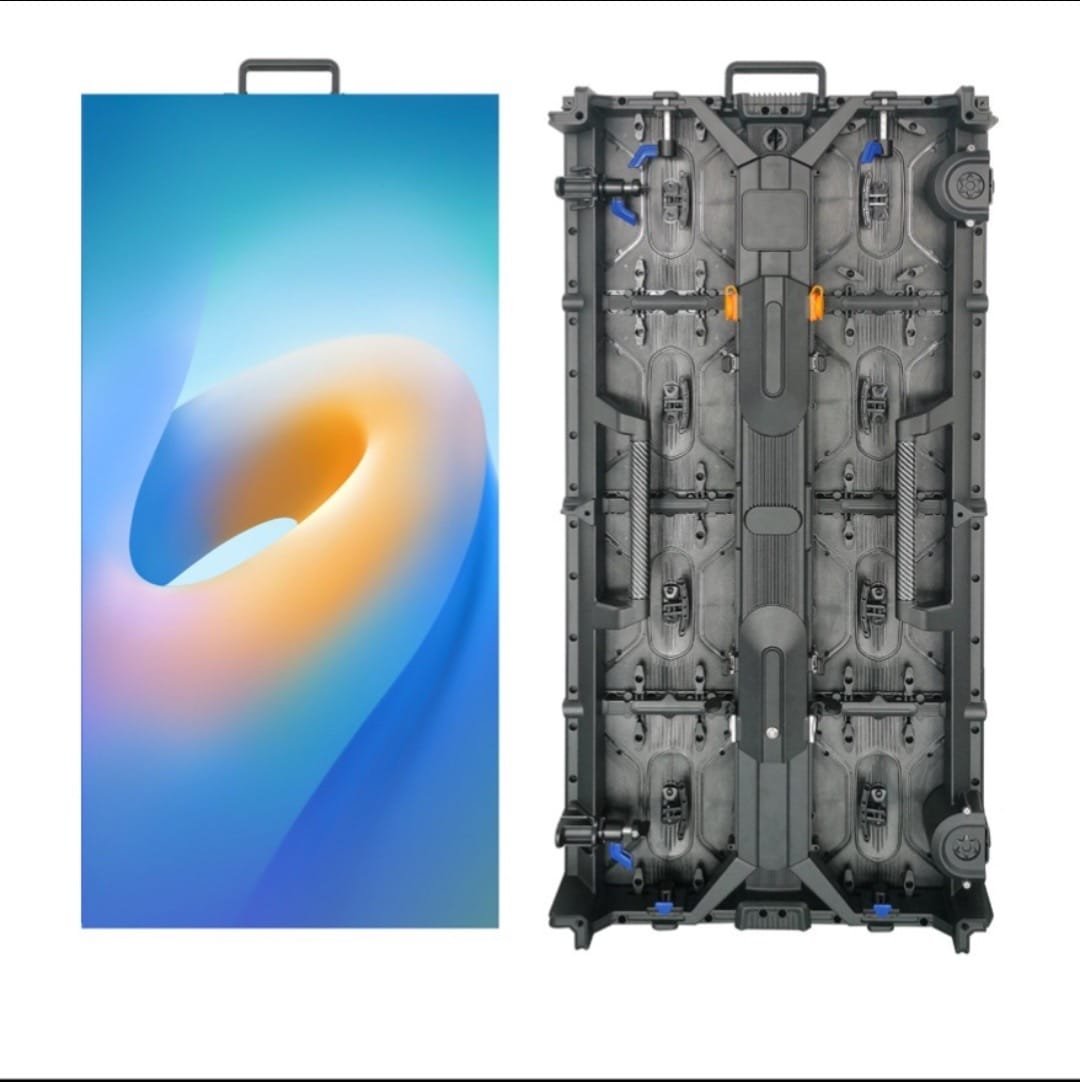

P2.5 Outdoor LED Screen Cabinet – 1920×960mm Weatherproof Modular Display

⤢

Home/ Shop/ P2.5 Outdoor LED Screen Cabinet –…

P2.5 Outdoor LED Screen Cabinet – 1920×960mm Weatherproof Modular Display

★★★★★ Factory Direct · CE · RoHS · FCC

173 USD

Per unit · ✅ 5% off with crypto · Small orders accepted

Inquiry

✅ CE · RoHS · FCC 🛡️ 1-Year Warranty 🌍 Worldwide Shipping 💎 5% Crypto Discount

🏭 Factory-direct from Guangzhou — zero middlemen

🔬 72-hour aging test before every shipment

✈️ DHL Express & Sea Freight to 24+ countries

💬 WhatsApp support — reply within minutes

Outdoor · IP65 · SMD1415 · 2.5mm

Pixel Pitch
P2.5
OUTDOOR

LED SCREEN

Giant-format 1920×960mm modular outdoor LED cabinet engineered for 365-day weather operation. 5,000 NITS sun-readable brightness, IP65 protection, and seamless scalability for any billboard or live event display.

NITS Brightness

IP65

Front Protection

100K

Hours Lifespan

Request a Quote
View Full Specs

NITS

P2.5
OUTDOOR

1920 × 960mm · MODULAR LED CABINET · LOCATICO / TENTECH

🌧️

Rain Resistant

IP65 front — no water ingress

☀️

Direct Sunlight

5,000 NITS — clearly visible

💨

Wind Resistant

Aluminum alloy structural cabinet

🌫️

Dust Proof

IP65 sealed front face

📅

365-Day Operation

100,000 hour LED lifespan

// Technical Data

Full Specifications

Every detail engineered for outdoor performance. SMD1415 technology, high-contrast cabinet design, and wide viewing angles for maximum visual impact.

OPTICAL & DISPLAY

Pixel Pitch

2.5 mm

Pixel Density

160,000 pixels / m²

LED Type

SMD1415

Brightness

5,000 NITS

Refresh Rate

1,920 Hz — smooth video playback

Module Matrix

64 × 64 pixels per module

Min. Viewing Distance

3 meters

CABINET & BUILD

Cabinet Size

1920 × 960 × 120 mm

Cabinet Material

Aluminum Alloy

Cabinet Weight

47 kg per cabinet

IP Rating (Front)

IP65 Dustproof + Waterproof

IP Rating (Rear)

IP54 Splash & Dust Resistant

Maintenance

Front Access — easy module swap

Lifespan

100,000 hours

POWER & CONNECTIVITY

Avg. Power Consumption

216 W / m²

Max Power Consumption

648 W / m²

Control Distance

WiFi 50mEthernet 100mFiber 20KM

Input Signals

HDMI · DVI · SDI · HD-SDI · Composite · S-Video

PRODUCT INFO

Brand

Locatico / Tentech

Model

P2.5 Outdoor LED Cabinet

Unit Price

$188 USD

Warranty

2 Years

Support

24/7 Online Technical Assistance

// Product Highlights

Built for the Outdoors

Six core engineering advantages that make the P2.5 cabinet a reliable, high-performance choice for any outdoor installation.

☀️

5,000 NITS Daylight Visibility

Ultra-high brightness output ensures crystal-clear image quality even in direct sunlight. Your content remains vivid, high-contrast, and fully legible at any hour of the day.

🛡️

IP65 Weatherproof Front

IP65-rated front face provides complete dust and water ingress protection. Resistant to heavy rain, splashing, humidity, and airborne debris — built to run 365 days a year without failure.

🔧

Front-Access Maintenance

Individual LED modules can be replaced from the front face — no need to dismount the cabinet. Dramatically reduces service time and eliminates the cost of rear-access scaffolding for wall-mounted installations.

🧩

Giant Modular Scalability

Each 1920×960mm cabinet connects seamlessly to form any display size — from a single 1.84m² panel to a 400m² mega billboard. Zero-gap assembly creates a perfectly uniform visual surface at scale.

🎬

1,920 Hz Refresh Rate

High refresh rate delivers perfectly smooth video reproduction with zero flicker — even when recorded by professional broadcast cameras. Ideal for live sports, concerts, and televised events.

🏗️

Aluminum Alloy Cabinet

Precision die-cast aluminum construction provides exceptional structural rigidity, corrosion resistance, and heat dissipation. The lightweight design simplifies installation for wall-mount, ground-stack, and hanging configurations.

// Optical Performance

Sun-Defying Brightness

NITS

P2.5 Outdoor Cabinet

5,000 NITS

Pixel Density

160,000 pixels/m²

Refresh Rate

1,920 Hz

LED Technology

SMD1415

LED Lifespan

100,000 hours

Brightness Comparison

This Cabinet (Outdoor P2.5)5,000 NITS

Standard Indoor LED1,000 NITS

Premium LCD Screen800 NITS

Consumer TV400 NITS

// Weather Protection

IP65 / IP54 Rated

Dual IP rating system — maximum protection where it matters most, on the face of the display that faces the elements.

IP65

Front Face — Full Protection

The ‘6’ digit confirms total dust-tight protection — no dust particles can enter. The ‘5’ digit confirms powerful water jet resistance — the front face can withstand direct hosing from any direction without water ingress. Suitable for all outdoor environments including heavy rain, coastal spray, and high-humidity climates.

✓ Dustproof
✓ Waterjet Resistant
✓ Heavy Rain
✓ Coastal Use

IP54

Rear Cabinet — Splash Resistant

The rear housing is rated IP54 — ‘5’ for protection against dust ingress (not fully sealed, but no harmful deposits), and ‘4’ for water splash protection from all directions. Designed for installations where the rear is partially sheltered but may still be exposed to moisture and airborne debris during service.

✓ Dust Resistant
✓ Splash Protected
✓ All-Direction Splash

// Control Options

3 Control Methods

Flexible control architecture covers everything from short-range wireless installations to multi-kilometer distributed display networks via fiber optic infrastructure.

📡

WiFi Control

meters range

Wireless control ideal for event deployments, pop-up installations, and venues where cable runs are impractical. Quick setup without infrastructure requirements.

🔌

Ethernet

100

meters range

Reliable wired control for permanent fixed installations. Standard Cat5e/Cat6 cabling provides stable, interference-free connection for continuous operation in commercial sites.

💡

Fiber Optic

kilometers range

Long-distance fiber control for distributed networks spanning entire city blocks, airports, or highway billboard chains. Zero signal loss over 20KM with no electromagnetic interference.

// Input Compatibility

Signal Input Types

Broad input compatibility ensures the P2.5 cabinet works with any signal source — from consumer HDMI devices to professional broadcast SDI feeds.

🔷

HDMI

Consumer & pro A/V — 4K compatible sources

🔵

DVI

Digital visual interface — workstations & media servers

📺

SDI

Broadcast-grade serial digital — live productions

📡

HD-SDI

High-definition SDI — broadcast cameras & OB vans

🟠

Composite

Analog composite video — legacy source compatibility

🟡

S-Video

Separated video — analog broadcast & archival sources

// Use Cases

Outdoor Environments

Wherever large-format visual impact is needed in outdoor or semi-outdoor settings, the P2.5 cabinet delivers.

📢

Outdoor Advertising

High-impact roadside and building-facade advertising screens. Delivers unmissable daylight-visible content 24/7 for brand campaigns and OOH advertising networks.

🗺️

Digital Billboards

Replace static billboards with dynamic LED screens that display multiple advertisers on a timed rotation. Scalable to any billboard format — from urban poster to highway mega-board.

🎤

Concerts & Live Events

Stage backdrop screens, IMAG relay panels, and artist support visuals for outdoor concerts, music festivals, and touring productions in any weather condition.

🏟️

Sports Broadcasting

Perimeter boards, giant scoreboards, and replay screens for stadiums, racetracks, and open-air sporting venues where broadcast-quality visuals are non-negotiable.

ℹ️

Public Information

City squares, transport hubs, and civic spaces benefit from weather-resistant high-brightness screens for wayfinding, emergency broadcasts, and community announcements.

🛍️

Retail Facades

Shopping malls, flagship stores, and FMCG brands using exterior LED screens to drive foot traffic with dynamic promotions visible from across the street or car park.

🎪

Trade Fairs & Expos

Outdoor exhibition pavilions and product launch events requiring large-format LED display with quick setup, teardown, and the ability to operate in direct sunlight.

✈️

Transport Hubs

Airport aprons, railway forecourts, bus station canopies, and ferry terminals where passenger information and advertising require weatherproof high-brightness displays.

// Power Specs

Power Consumption

Efficient SMD1415 LED technology delivers industry-leading brightness with managed power draw, reducing operating costs over the 100,000-hour lifespan.

⚡

216 W/m²

Average Consumption

Typical operating power in normal display conditions. Used for calculating ongoing electricity costs at standard brightness levels for continuous operation.

🔋

648 W/m²

Maximum Consumption

Peak draw at full 5,000 NITS white output. Used for electrical planning, circuit sizing, and generator specification for events and permanent installations.

🕐

100K HRS

LED Lifespan

At 12 hours of daily operation, the LEDs are rated to last over 22 years — delivering consistent brightness and color accuracy across the full operational lifetime of the installation.

// Get Started

ORDER TODAY

Factory-direct pricing, no minimum order requirement, and worldwide export packaging. Whether you’re building a single billboard or a national digital OOH network — we deliver.

^$188

per cabinet unit
✓ No minimum order

✓ Factory-direct competitive pricing

✓ Small orders accepted — no MOQ

✓ Export-ready packaging for international shipping

✓ Fast delivery with full tracking

✓ 2-year warranty on every cabinet

✓ 24/7 online technical support included

✓ Installation guidance & remote commissioning

✓ Custom sizes and OEM available on request
