✦ See-Through LED · Floating Content Effect · Glass Façades
Side Lighting
Transparent LED Display
Turn any glass surface into a living media wall — without blocking daylight. LEDs mounted sideways on ultra-slim louvers create a stunning “floating content” effect. Up to 90% transparency. Available in P3.91 to P15.625 pixel pitch.
🪟 Up to 90% Transparency
☀️ 5,000 cd/m² Brightness
⚖️ Only 10 kg/m²
🔄 Up to 3,840Hz
🔀 Curved & Custom Shapes
🪟 What Is a Side Lighting Transparent LED Display?
Unlike standard LED screens, this display mounts its LEDs sideways on ultra-slim aluminium louver strips, so ambient light and sightlines pass freely through the open gaps while the emitted LED light forms vivid content. The result is a “floating content” effect — video and graphics appear suspended in glass, keeping the space behind fully bright and open. By day it is clean and elegant. By night it becomes a signature luminous façade, a retail window or a creative architectural statement.
✨
Key Features
|
🪟
Up to 90% Transparency
Minimum ≥85% light transmittance — up to ~90% on certain models. Natural daylight passes through freely. Interiors stay bright, open and visible. No more choosing between advertising and openness.
|
✦
Floating Content Effect on Glass
Side-emitting LEDs on slim louvers make content appear to float against the glass. Videos, graphics and animations seem suspended in air — a premium, modern aesthetic that no opaque screen can replicate.
|
|
⚖️
Ultra-Lightweight — 10 kg/m²
Slim aluminium profile construction at only ~10 kg/m². Dramatically reduces structural load on glass façades — less steelwork, lower keel requirements and significantly reduced project cost versus conventional LED cabinets.
|
🔀
Curvable & Custom Shapes
Flexible modules support concave and convex curves, arcs, rings, sky domes and irregular glass configurations. Standard 1000×500mm panels mix to create any custom screen shape or size.
|
|
🔧
Front Access — Fast Maintenance
Modular 1000×500mm panels with front-access service design. Modules replaced quickly from the safe side — no scaffolding or rear access required. Minimises downtime and labour for high-rise or façade installations.
|
☀️
5,000 cd/m² — Day & Night Readable
High 5,000 cd/m² brightness ensures vivid visibility in direct sunlight. 16-bit grayscale and up to 3,840Hz refresh rate deliver smooth, flicker-free motion for camera shooting and live broadcast scenarios.
|
|
🎯
Multiple Pixel Pitches Available
P3.91–7.8 for close-range retail detail. P7.8 for balanced mid-range façades. P10.42 for larger commercial buildings. P15.625 for landmark walls and long-distance viewing — match pitch to your screen size and viewer distance.
|
⏳
100,000-Hour Lifespan
Rated for ≥100,000 hours of service life. MTBF >10,000 hours. Built on proven SMD3512 side-emitting LEDs with ICN2038 driver ICs — long-term reliability for permanent architectural installations.
|
🎯
Choose Your Pixel Pitch
| Model |
Pixel Pitch |
Min. Distance |
Best Application |
| P3-7 |
3.91 – 7.8 mm |
≥ 5 m |
Premium retail windows, luxury showrooms, close-viewer storefronts |
| P7-7 |
7.8 mm |
≥ 5 m |
Glass curtain walls, commercial façades, bars, KTV venues, mid-range buildings |
| P10-10 |
10.42 mm |
≥ 5 m |
Landmark buildings, large-area façades, observation elevators, sky rings |
| P15-15 |
15.625 mm |
≥ 5 m |
Very large façades, long viewing distance (50m+), cost-efficient giant walls |
💡 Not sure which model fits your project? Share your glass dimensions, viewing distance and building type — we will recommend the right pitch and estimate screen cost via WhatsApp within 2 hours.
📋
Technical Specifications
| Specification |
P3-7 |
P7-7 |
P10-10 |
P15-15 |
| Pixel Pitch |
3.91–7.8mm |
7.8mm |
10.42mm |
15.625mm |
| LED Type |
SMD3512 Side-Emitting |
| Driver IC |
ICN2038 |
| Drive Mode |
1/4 scan |
1/8 scan |
1/2 scan |
Static |
| Pixel Density |
32,768/m² |
16,384/m² |
9,216/m² |
4,096/m² |
| Cabinet Size |
1000 × 500 mm |
| Cabinet Resolution |
256×64 |
128×64 |
96×48 |
64×32 |
| Transparency |
≥ 85% (up to ~90%) |
| Brightness |
5,000 cd/m² |
| Refresh Rate |
>1920Hz |
>1920Hz |
>1920Hz |
3840Hz |
| Frame Rate |
60 fps |
| Grayscale |
16-bit |
| Viewing Angle |
H: 140° / V: 140° |
| Min. Viewing Distance |
≥ 5 m |
| Weight |
~10 kg/m² |
| Cabinet Material |
Aluminium extruded profile |
| Power (Max/Avg) |
~689 W/m² max · ~235 W/m² average |
| Input Voltage |
AC 86–264V / 60Hz (universal) |
| Operating Temp. |
-20°C to +60°C (extended: -40°C to +60°C) |
| Humidity |
10% – 85% RH |
| IP Rating |
IP30 standard · outdoor weatherproofing configured per project |
| MTBF |
> 10,000 hours |
| Service Life |
≥ 100,000 hours |
📍
Where It Works Best
|
🏢

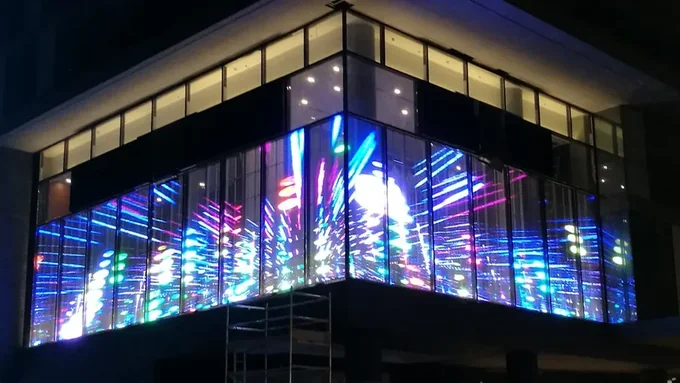

Glass Curtain Walls & Façades
Landmark office buildings, mixed-use towers, cultural centres — media on glass without darkening the interior
|
🏪

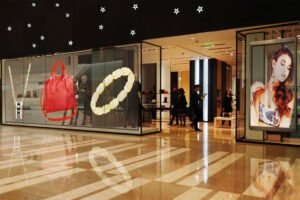

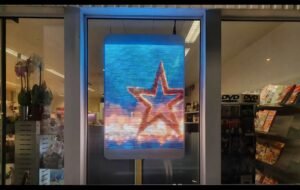

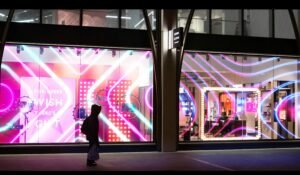

Retail Windows & Showrooms

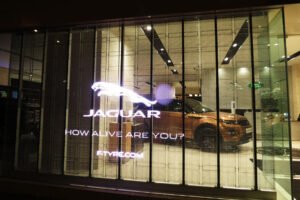

High-street shopfronts, luxury retail, car showrooms — brand content on the window while products remain visible inside
|
🎶

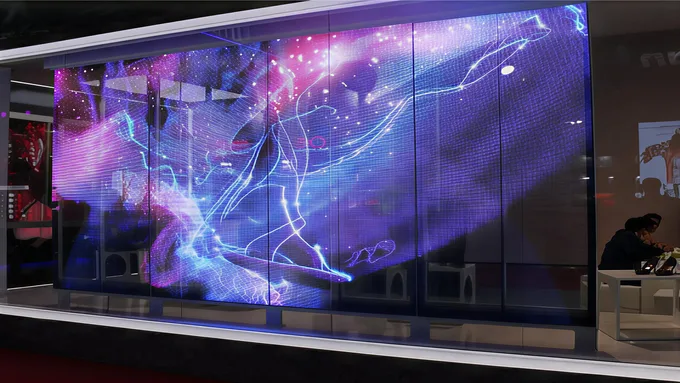

Bars, KTV & Entertainment
High-energy visual backdrops and partition walls — immersive atmosphere without blocking sightlines or light
|
|
🛗
Scenic Elevators & Sky Rings
Observation lifts, sky domes, rooftop rings — curved glass display applications where content and views coexist
|
🏙️
City Landmarks & Public Spaces
Airports, metro stations, civic buildings, plazas — architectural media that enhances rather than obstructs
|
🔷
Irregular & Curved Glass
Custom curved façades, arches, cylinders and complex shapes where traditional rigid cabinets cannot fit
|
❓
Frequently Asked Questions
What makes side-lighting different from regular transparent LED?
Standard transparent LEDs face forward. Side-lighting mounts LEDs sideways on slim louver strips — light travels through the open gaps so the content appears to float on glass. The result is a much cleaner, more open look with higher achievable transparency.
Will it block daylight inside my building?
No. Transparency is ≥85% — up to ~90% depending on model. Natural daylight passes freely through the open gaps. Interior spaces remain bright and sightlines stay open. This is the key reason architects specify side-emitting transparent LED for glass curtain walls.
Which pixel pitch should I choose?
P3-7 (3.91mm) for premium retail close-viewing. P7-7 for most commercial building façades. P10-10 for larger public and landmark projects. P15-15 for very large screens viewed from 50m+. Tell us your minimum viewer distance and screen dimensions — we’ll confirm the right model.
Is it suitable for camera and broadcast use?
Yes. 16-bit grayscale, 60fps frame rate and up to 3,840Hz refresh (P15-15 model) minimise flicker and banding when captured by cameras. Suitable for broadcast backdrops, live streaming and professional video production environments.
How is it maintained at height on a façade?
Modular 1000×500mm panels with front-access design allow technicians to replace any module from the safe front side — no rear access or heavy scaffolding required. Individual modules are swapped in minutes, keeping façade downtime minimal.
Is it truly weatherproof outdoors?
The standard configuration is IP30. For projects with direct rain exposure, an outdoor weatherproofing package is configured per-project. Operating range is -20°C to +60°C (extended -40°C to +60°C available). Contact us with your installation environment details for the correct protection specification.
🏭 Factory Direct — Custom Sizes Available
All panels factory tested before dispatch. Custom screen shapes, curves and OEM available. Worldwide shipping. Reply on WhatsApp within 2 hours with your screen size, building type and viewing distance.
✅ ≥85% Transparency
✅ Side-Emitting SMD3512
✅ Up to 3,840Hz Refresh
✅ 16-bit Grayscale
✅ 5,000 cd/m² Brightness
✅ 10 kg/m² Lightweight
✅ 100,000h Service Life
✅ Curved & Custom Shapes
✅ Front Access Maintenance
✅ OEM / Custom Available
Y
Overview
The Side Lighting Transparent LED Display Module is an advanced transparent LED solution engineered using side-pasted LED lamp bead technology. This innovative approach delivers exceptional brightness of up to 7,000 cd/m², outstanding transparency, and unmatched flexibility for custom configuration
Designed for retail, commercial, and architectural environments, this module combines aesthetic elegance with high-performance display capabilities. Its modular structure supports free splicing into virtually any layout or shape, making it the ideal choice for creative advertising and branding installations.
Key Features
✅ Modular Design — Free splicing capability allows modules to be assembled into any layout: horizontal, vertical, curved, or custom geometric shapes.
✅ High Permeability — Transparent LED structure maintains natural light flow and clear visibility through the display, ideal for window and glass installations.
✅ Aluminum Alloy Profile — Premium aluminium alloy frame ensures superior heat dissipation, reduced weight, lower cost of ownership, and simplified maintenance.
✅ Ultra-Thin Design — Slim profile creates an elegant, minimalist appearance once installed — blends seamlessly with modern architectural interiors.
✅ Flexible Installation Methods — Supports hoisting (ceiling suspension), vertical floor standing, back-mount support structures, and other custom mounting configurations.
✅ Dual Brightness Options — Switchable high and low brightness settings adapt to different ambient lighting conditions.
✅ Side-Pasted LED Technology — Advanced lamp bead design maximises light output, improving brightness uniformity and colour consistency across the display.
✅ Custom Shapes & Sizes — Beyond standard rectangular panels, modules can be fabricated into spheres, arcs, cylinders, circles, and other bespoke geometric forms.
Technical Specifications
| Parameter |
Specification |
| Technology |
Side-Pasted LED Lamp Bead |
| Maximum Brightness |
7,000 cd/m² |
| Brightness Modes |
High / Low (switchable) |
| Standard Module Sizes |
1000×500 mm |
| Custom Sizes |
Available on request |
| Frame Material |
Aluminium Alloy Profile |
| Transparency |
High Permeability |
| Profile Thickness |
Ultra-Thin |
| Installation Methods |
Hoisting · Vertical · Back Support · Custom |
| Custom Shapes |
Sphere · Arc · Cylinder · Circle · Bespoke |
| Pixel Options |
P2.8 / P3.91 |
| Control |
Remote / Cluster via Phone or Computer |
| Playback |
Automatic / Scheduled / Manual |
| Operating Temp. |
-20°C to +60°C |
| Certification |
CE / RoHS / FCC |
Standard Sizes & Custom Shapes
Standard Module Sizes:
- 1000 × 1000 mm — Standard Square Module
- 1000 × 500 mm — Standard Half Module
- 500 × 500 mm — Compact Module
- Custom — Any dimension on request
Available Custom Shapes:
Sphere · Arc · Cylinder · Circle · Curved Wall · Column Wrap · Custom Geometry
Scope of Application
🏪 Retail Windows — Store-front and window display advertising
🏬 Shopping Malls — Indoor atrium and corridor digital signage
🏢 Business Halls — Corporate lobbies and reception areas
🎪 Exhibition Displays — Trade shows, expos, and promotional booths

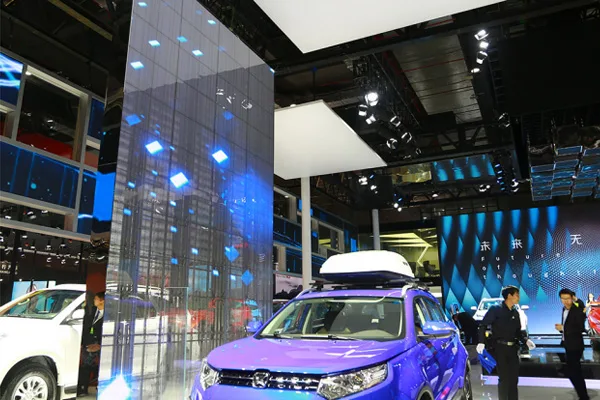

🚗 Automobile Showrooms — 4S dealerships and automotive brand displays
💎 Jewellery Stores — Luxury retail showcases and product spotlights
🏦 Banks & Finance Centers — Queue management and brand communication
🎨 Creative Installations — Architectural art, museums, and bespoke projects
Price
310 USD per unit ( 1000×500 mm )
