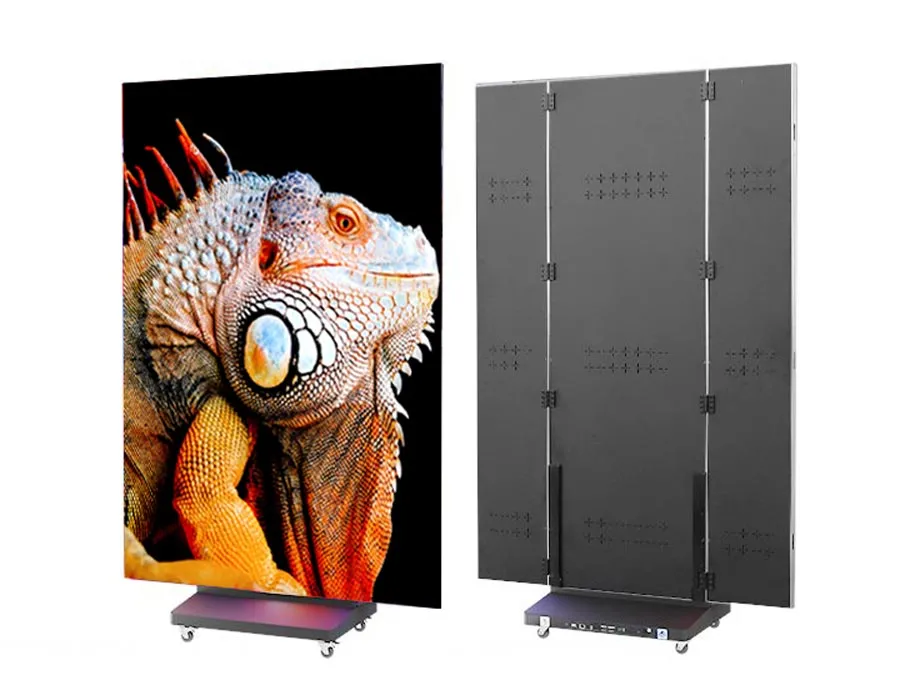

The Triple-Fold LED Poster Screen is a next-generation portable digital display engineered for maximum visual impact with minimum setup time. Its patented triple-fold design gives you two displays in one — unfold for a massive large-format LED wall, or fold it into a sleek double-sided poster screen visible from both directions. Built with premium GOB/COB technology, aircraft-grade aluminum, and wireless APP content control, this is the ultimate advertising tool for events, retail, exhibitions, and commercial spaces.
| Specification | Details |
|---|---|
| Brand | Locatico (Guangzhou Lianxian) |
| Model | Triple-Fold LED Poster Screen P2.5 |
| Pixel Pitch Options | P1.25 / P1.53 / P1.86 / P2.0 / P2.5 (custom) |
| LED Technology | GOB (Glue-On-Board) / COB available |
| Display Type | Triple-fold, dual-sided capable |

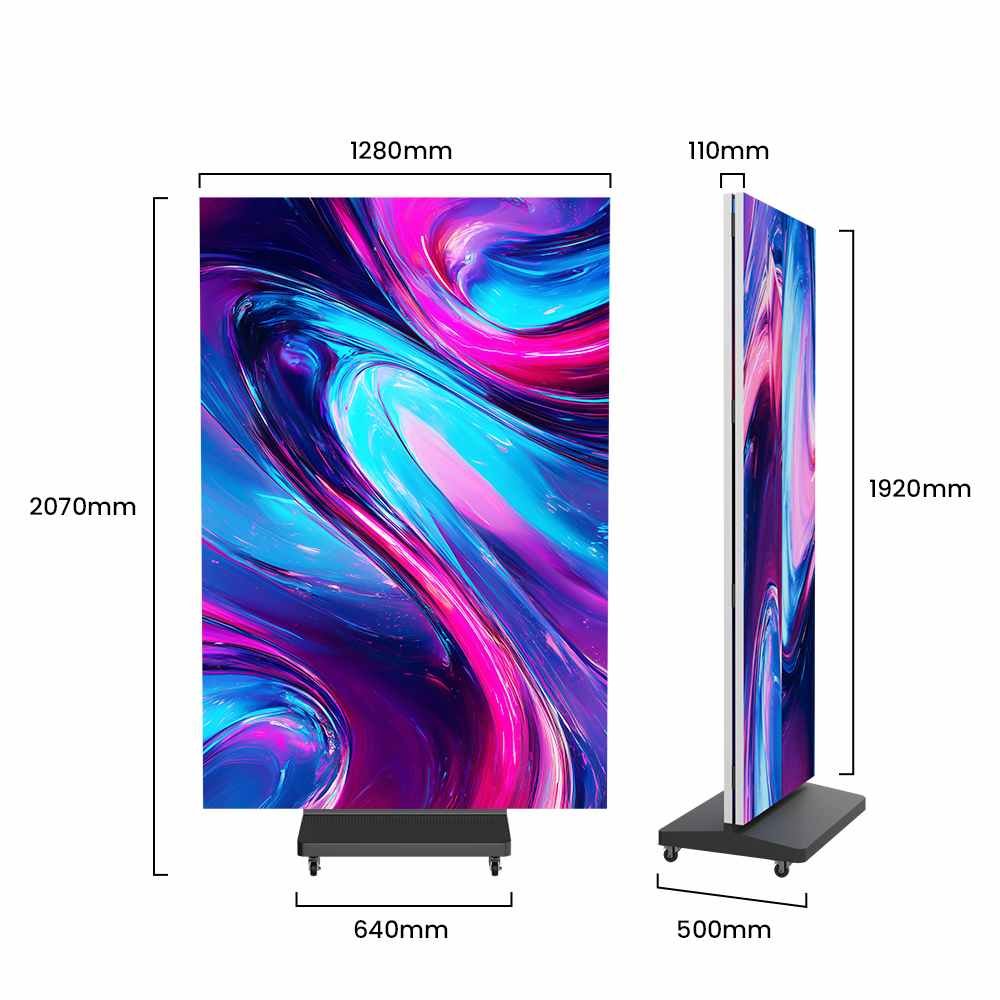

| Unfolded Screen Size | 1280mm × 1920mm (approx. 93″) |
| Folded Screen Size | 640mm × 1920mm (approx. 83″ per side) |
| Cabinet Thickness (Unfolded) | 50mm |
| Cabinet Thickness (Folded) | 110mm |
| Weight | 78 kg |

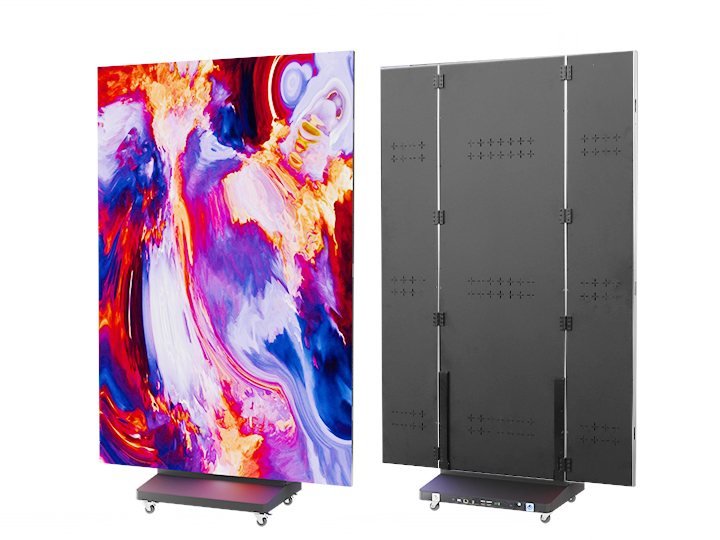

| Frame Material | Aviation-grade aluminum alloy |
| Brightness | ≥ 800 nits (indoor) / adjustable |
| Refresh Rate | ≥ 3840Hz (up to 7680Hz) |
| Contrast Ratio | 8000:1 |
| Viewing Angle | 160° horizontal / 160° vertical |
| Color Temperature | 3200K – 9300K adjustable |
| Grayscale | 16-bit (65,536 levels) |
| IP Rating (GOB) | IP54 front / IP20 rear |
| Lifespan | ≥ 50,000 hours |
| Operating Temperature | -20°C to +60°C |
| Power Consumption (avg) | ≤ 300W |
| Power Consumption (max) | ≤ 800W |
| Input Voltage | 110V – 240V AC (universal) |
| Control System | Synchronous & Asynchronous |
| Connectivity | WiFi / USB / HDMI / LAN / Optional 4G |
| Content Management | Mobile APP (iOS & Android), PC software |
| Audio | 2x Built-in speakers + 3.5mm audio output jack |
| Mobility | 4x 360° swivel wheels with brake |
| Splicing | Quick-lock seamless multi-unit splicing |
| Splicing Configurations | Linear / L-shape / Column / Hexagonal |
| 3-Unit Spliced Size | Up to 156″ seamless display (2K resolution) |
| Maintenance | Front-access module replacement |
| Certifications | CE, RoHS, FCC |
| Warranty | 2 Years Manufacturer Warranty |
| In The Box | 1x LED Poster Screen + 1x Flight Case + Power Cable + Remote + Manual |
| Shipping | DHL Express / Sea Freight — Worldwide from Guangzhou |
