Advanced large-format inkjet printing directly onto walls — murals, branding, graphics & art on any vertical surface

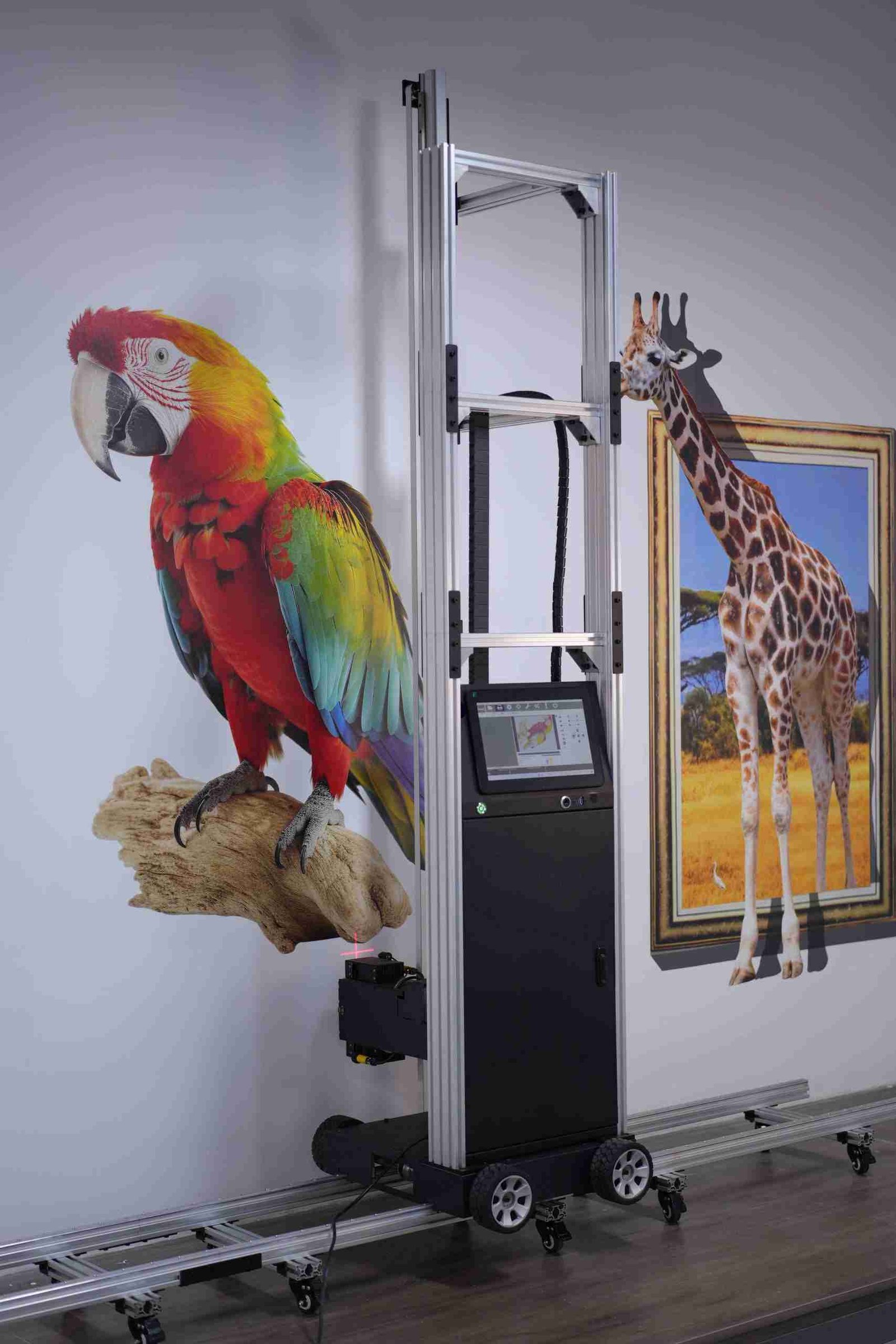

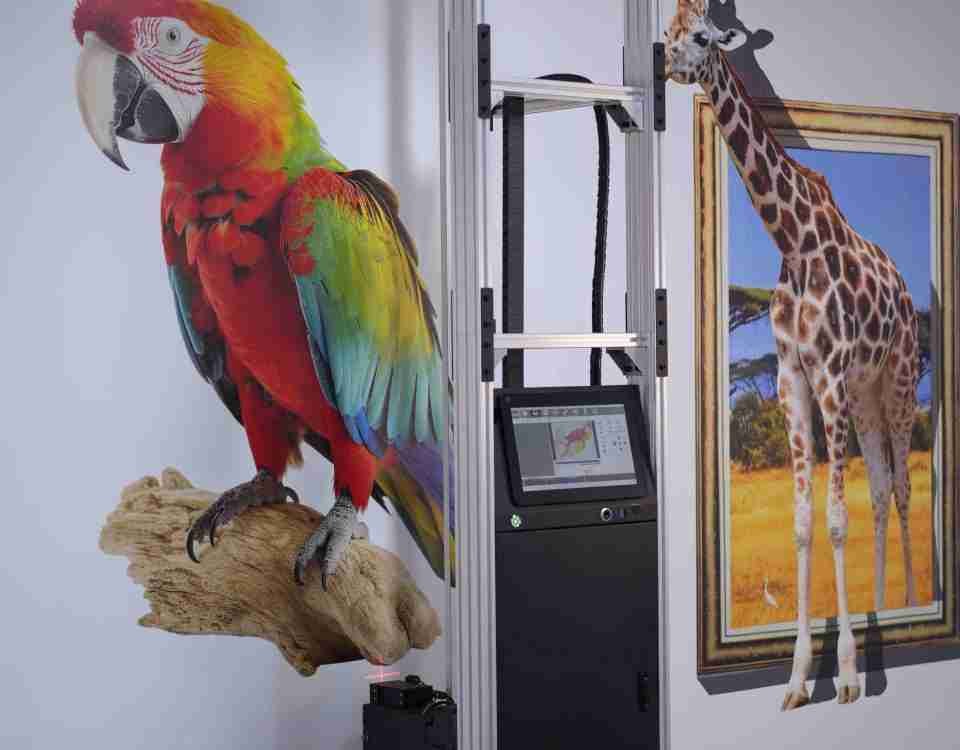

The Vertical Wall Printer from DLED Factory is a professional-grade direct-to-wall digital printing system that prints high-resolution murals, logos, branding graphics, and decorative art directly onto any vertical surface — walls, tiles, glass, wood, concrete, and more. No stencils. No vinyl. No manual painting.
Powered by advanced Epson i3200 / DX7 printhead technology, it delivers photorealistic quality at up to 1440 DPI resolution with speeds of up to 12 m²/hour. Two ultrasonic wall-sensing sensors automatically adjust for surface irregularities, ensuring perfect print quality even on uneven walls. Print height is unlimited — the system moves continuously up the wall without seams.
Available in three model sizes to suit any business — from individual interior decorators to large commercial printing operations.
| Specification | Details |
|---|---|
| 📋 GENERAL | |
| Brand | DLED Factory (Guangzhou Lianxian) |
| Model | Vertical Wall Printer — Small / Medium / Large |
| Technology | Advanced UV / Water-based inkjet |
| Printhead | Epson i3200 / Epson DX7 (industrial grade) |
| Printhead Channels | 8-channel high-precision output |
| Operation | Computer / Mobile App / Built-in touchscreen |
| Warranty | 2 Years Manufacturer Warranty |
| 🖨️ PRINT PERFORMANCE | |
| Max Resolution | 720×720 / 720×1080 / 720×1440 / 1440×2880 DPI |
| Color Mode | CMYK + White (5-color: C, M, Y, K, W) |
| Print Width — Small | 1.0 meters |
| Print Width — Medium | 1.5 meters |
| Print Width — Large | 2.0 – 2.5 meters |
| Print Height | Unlimited vertical (continuous printing) |
| Print Speed | 5–12 m²/hour (depending on resolution mode) |
| Bidirectional Printing | Yes — faster output |
| Ink Consumption | 12–14 mL/m² |
| Ink Tank Capacity | 2.5L per color cartridge set |
| Color Accuracy | ICC profile calibrated — precise color reproduction |
| HDR Rendering | Yes — photorealistic color depth |
| 🎨 INK SYSTEM | |
| Ink Type Options | UV-cured ink OR eco-friendly water-based ink |
| UV Ink Benefits | Instant cure, waterproof, fade-resistant, outdoor-grade |
| Water-Based Ink Benefits | Eco-friendly, low odor, ideal for indoor environments |
| White Ink | Included (CMYK+W 5-color system) |
| Ink Refill System | Continuous refillable cartridge system |
| Auto Ink Level Sensor | Yes — alerts when ink needs refilling |
| 🧠 SMART FEATURES | |
| Wall Sensing | 2× ultrasonic sensors — auto-adjusts for surface irregularities |
| Auto Calibration | Yes — automatic distance & alignment calibration |
| Power-Off Memory | Yes — resumes from exact position after power cut |
| Auto White Jump | Yes — skips white/blank areas to save ink |
| Real-Time Preview | Yes — live preview before printing begins |
| Remote Monitoring | Yes — cloud-based real-time status monitoring |
| Printhead Protection | Auto drop protection + anti-collision design |
| Temperature Sensor | Yes — monitors optimal printing temperature |
| 🖥️ SOFTWARE & CONNECTIVITY | |
| Control Software | Proprietary RIP software + printing control system |
| Compatible File Formats | JPG, PNG, BMP, PDF, TIFF, AI, PSD, CDR |
| Control Methods | Windows PC / Mobile App / Built-in touchscreen tablet |
| Wireless Control | Yes — Gigabit tablet remote control option |
| USB Support | Yes — load files via USB flash drive |
| Training Software | Unlimited online video call training included |
| 🏗️ STRUCTURE & MOBILITY | |
| Machine Dimensions | 380 × 720 × 1500 mm (approx.) |
| Machine Weight | ~60 kg |
| Frame | Modular floor-mounted portable frame |

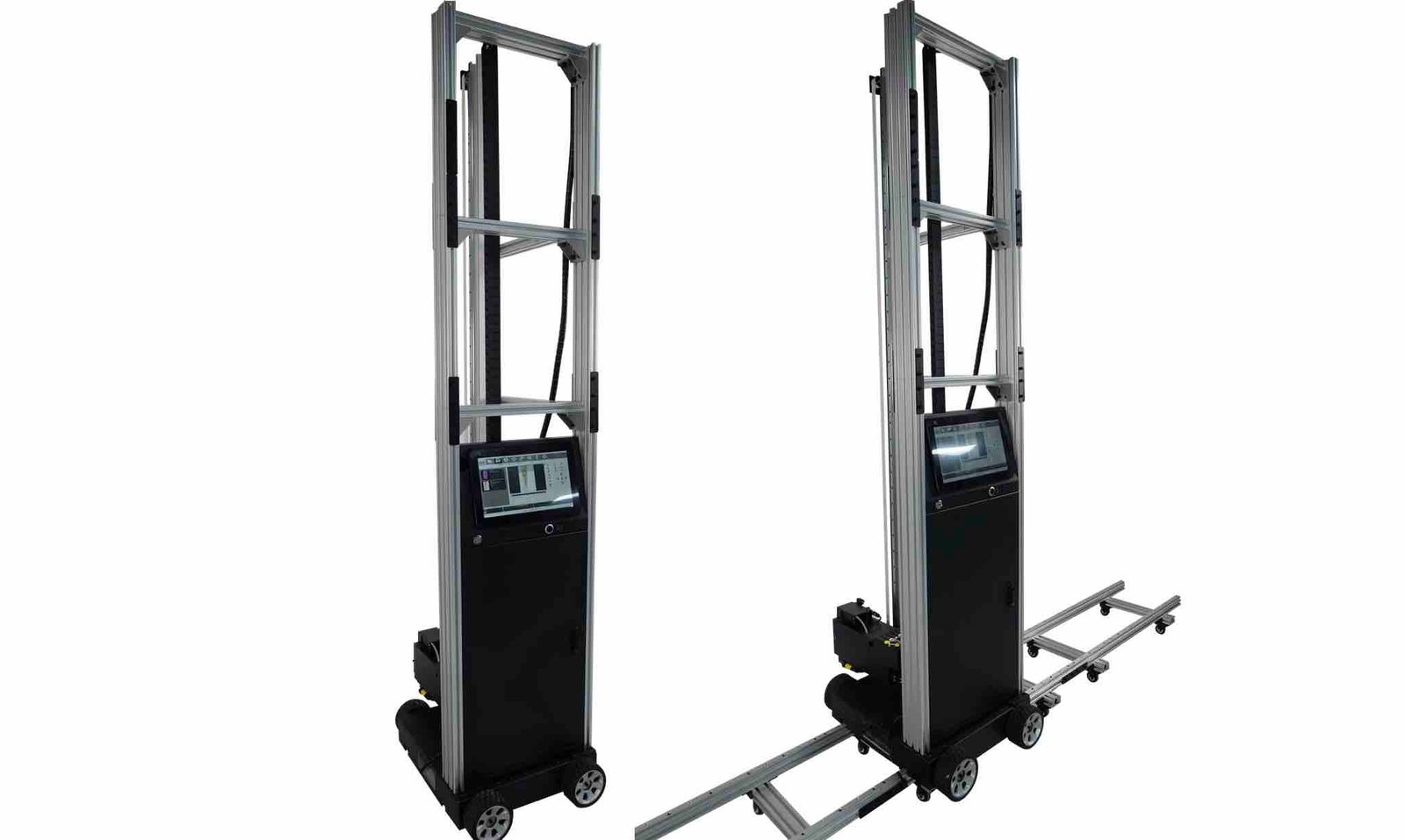

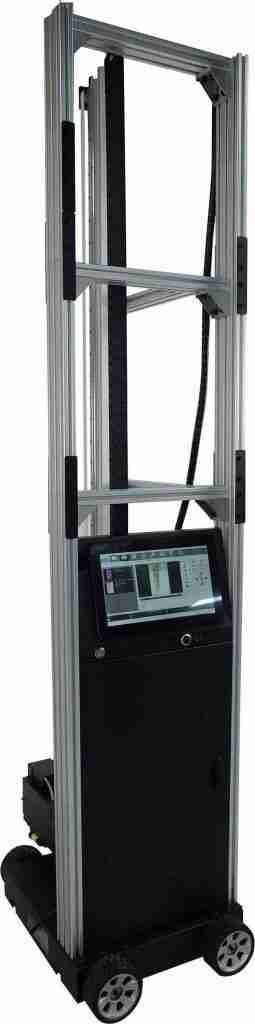

| Track System | Wheeled (flat walls) + track (uneven walls) |
| Track Length | 6 meters standard (extendable) |
| Adjustable Height | Yes — track has adjustable horizontal height |
| Mobility | Portable modular frame — easy relocation |
| Setup Time | Under 30 minutes |
| Carrying Case | Yes — protective carry bag for transport |
| ⚡ POWER & ENVIRONMENT | |
| Power Supply | 110V – 240V AC / 50-60Hz (global) |
| Power Consumption | ~300–500W (model dependent) |
| Operating Temperature | 0°C – 40°C |
| Humidity Range | 20% – 50% RH |
| Certifications | CE, RoHS |
| Shipping | Sea Freight or DHL Express — Worldwide from Guangzhou |
